Compressed air hammer VH60 Basic Set – VOGT

Article no. N/A Category

Compressed air hammer VH60 Basic set

VH60 – the strong one
The VH60 is a step up: the more powerful piston is suitable for tough, compact materials: bitumen, cement, plaster and masonry. Even tough glue residue from parquet floors can’t withstand the strong impact. The strong 18 mm chisel means that when undermining or breaking up flat roofs, the lifting capacity is high.

Air consumption: 255l/min / 3-6 bar

Available in the following lengths:
70 cm – 5.5 kg
90 cm – 5.9 kg
110 cm – 6.3 kg
130 cm – 6.7 kg

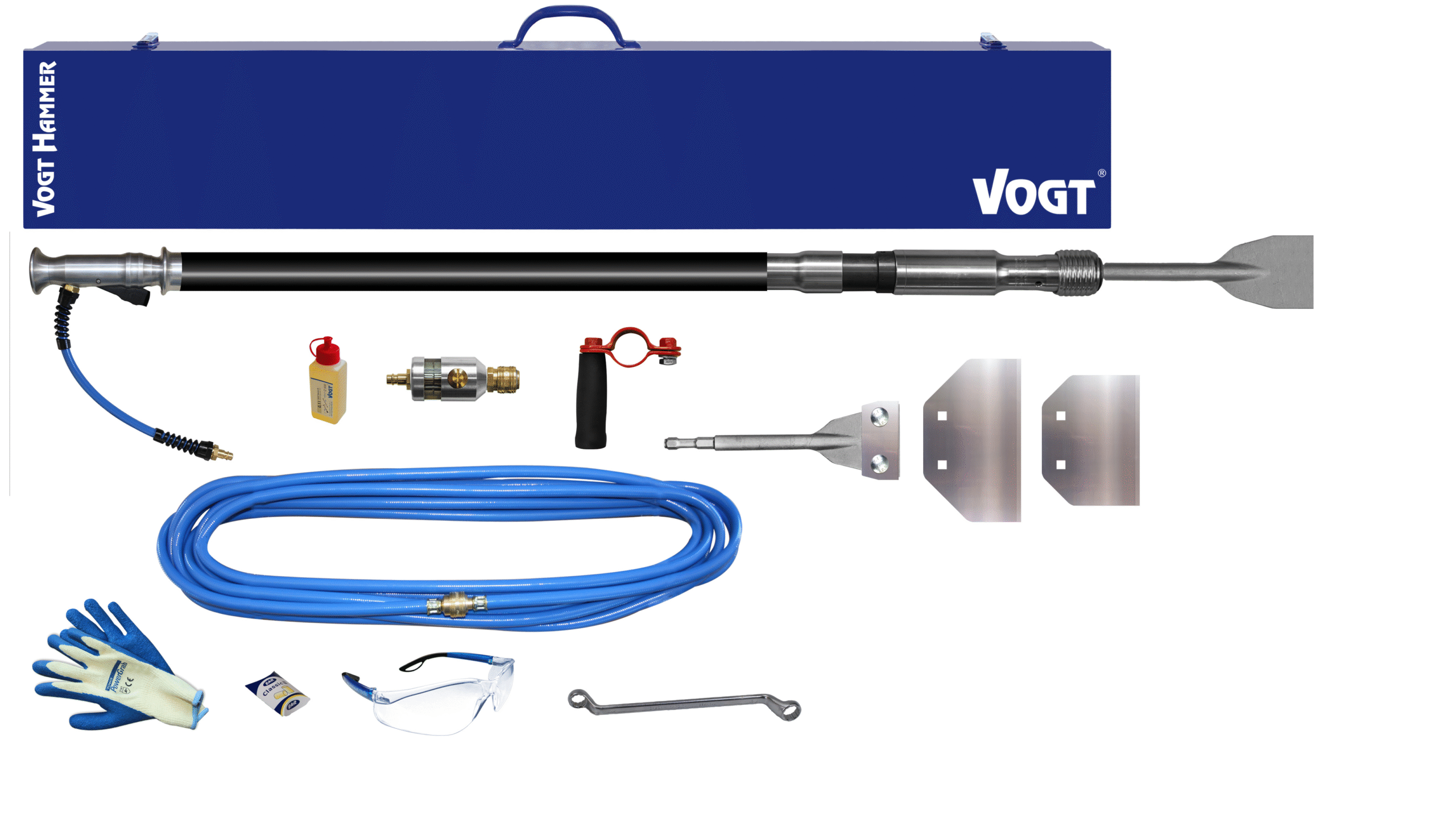

The set contains:

Tools
1 Delta-P knife M408.18 UP
1 scraper holder M5000.18
1 scraper B160S
1 scraper B200S

Accessories
1 handle Z650
1 precision oil dispenser for hose Z300
10 mtr. compressed air hose complete with connection
0.1 ltr. VOGT special oil
Ring spanner 15/19

Protective equipment
Work gloves
Safety goggles
Earplugs

Metal transport case
with operating instructions

Read more about accessories/tools in the brochure

Accessories for Compressed air hammer VH60 Basic Set – VOGT

Description

VOGT Hammer – in a class of its own
Compressed air hammers have been around for a long time, yet the VOGT Hammers are different. The lightweight, lance-shaped design gives you ideal working conditions.

The practical robust construction, superior material quality, craftsmanship and long tool life make the VOGT hammer suitable for many demanding tasks.
A huge range of tools and the ability to easily switch between different hammer sizes opens up a unique range of applications. That’s why the Vogt hammer is a very popular product among craftsmen in many different industries, including the damage service industry.

How to use

  • Peeling and cutting of glued floor coverings.
  • Removal of thick layers of paint, filler, foam backing and adhesives.
  • Scraping of bitumen and rubber surfaces.
  • Recoating parquet glued with elastic parquet adhesive.
  • Removal of ceramic floor and wall tiles.
  • Breaking up cement and gypsum-based thin plasters.
  • Removal of burrs and peaks on freshly poured concrete.



Advantages

  • Remove all types of surface coatings 2-4 times faster than with other tools.
  • Easy handling due to light weight and design.
  • Different shaft lengths for floor and wall applications.
  • Top ergonomics – Optimal working position – Easy on the body.
  • Tasks completed faster = more profit.
  • Vibration damped.
  • Wide range of tools.
  • Quick and easy tool change.
  • Modest air consumption – can be powered by 230 V compressor.
